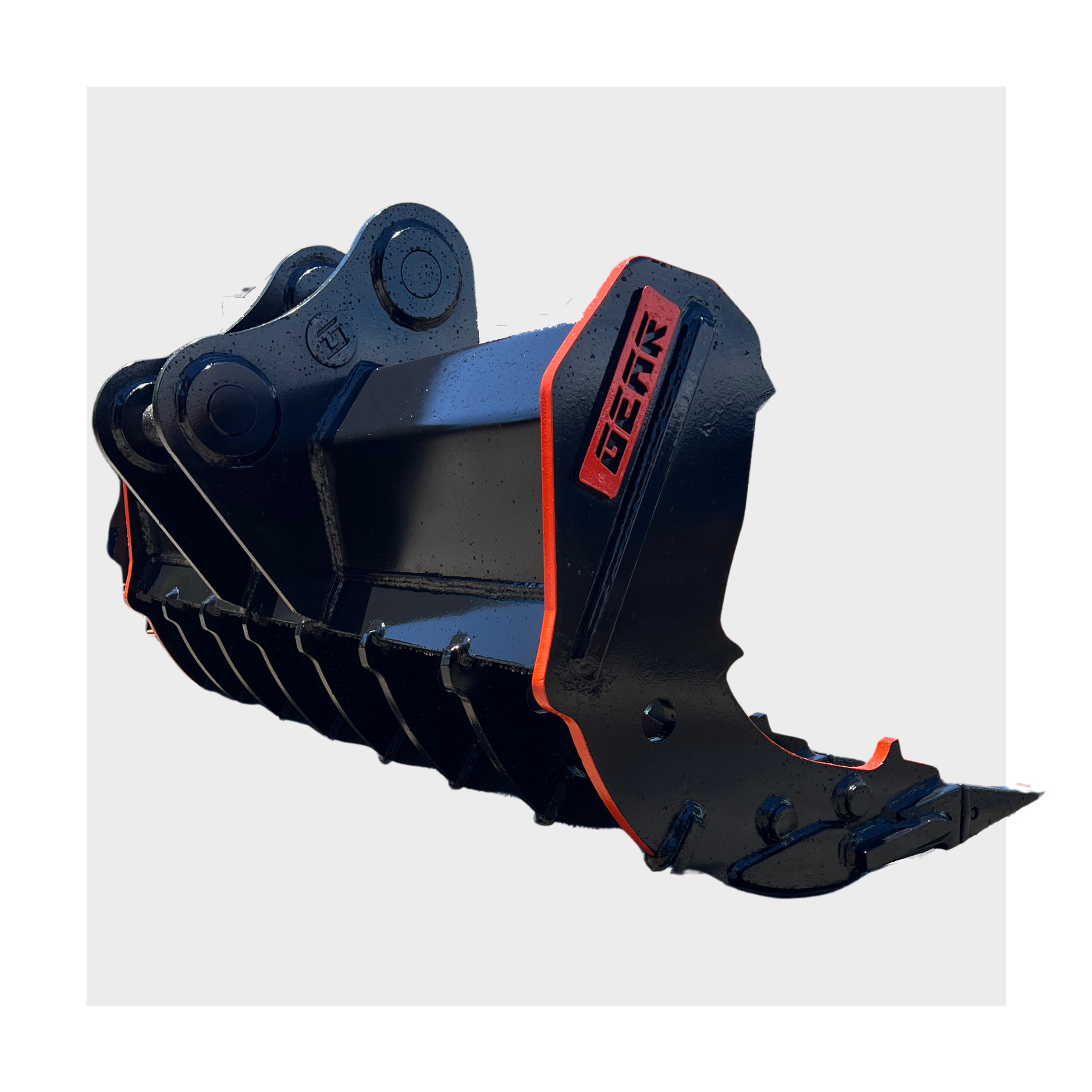

Multi-Purpose Rake Excavators 19-24T

Multi-Purpose Rake Excavators 19-24T

Designed to rip through soils and inconsistent rocky ground, these rakes are designed with generous inner curled tynes for carrying logs, culverts, trees and large rocks while keeping them secure by an extended tooth at the top and bottom of each tyne, making loading out trucks as easy as using a traditional bucket,  Use your Multi-rake to complete multiple tasks including land clearance, forestry clearing, ploughing soils and sorting rocks and rolling out tree stumps, There is no tougher Rake in the Australian market than the Gear Multi Purpose Rake, ask us to be put in touch with our customer base for testimonials today!

  • 2m wide

  • 8 tynes  x 25mm G350 plate

  • 260mm spacing between tynes

  • 8 x J300 cat style chisel teeth

  • 1 x 190mm x 2050mm push/levelling blade

  • Bucket profile

  • Additional holes through tynes for removable bar (for grade control 100mm gap)

  • 50mm cross bars through all tynes

  • 1250mm tip to front pin

  • Inner teeth on tynes for secondary ripping through vines/lantarna

  • Bis - Alloy 450 heel blocks on all tynes

  • 1000kg

  • RAKING

  • RIPPING

  • DIGGING

  • PUSHING (REVERSIBLE HITCH)

  • BACK BLADING (PUSH/LEVELLING-BLADE)

  • SORTING/SIEVING

  • LOADING OUT

  • PLOUGHING

  • CARRYING

  • DEMOLITION

Multi-Purpose Rake Excavators 19-24T
